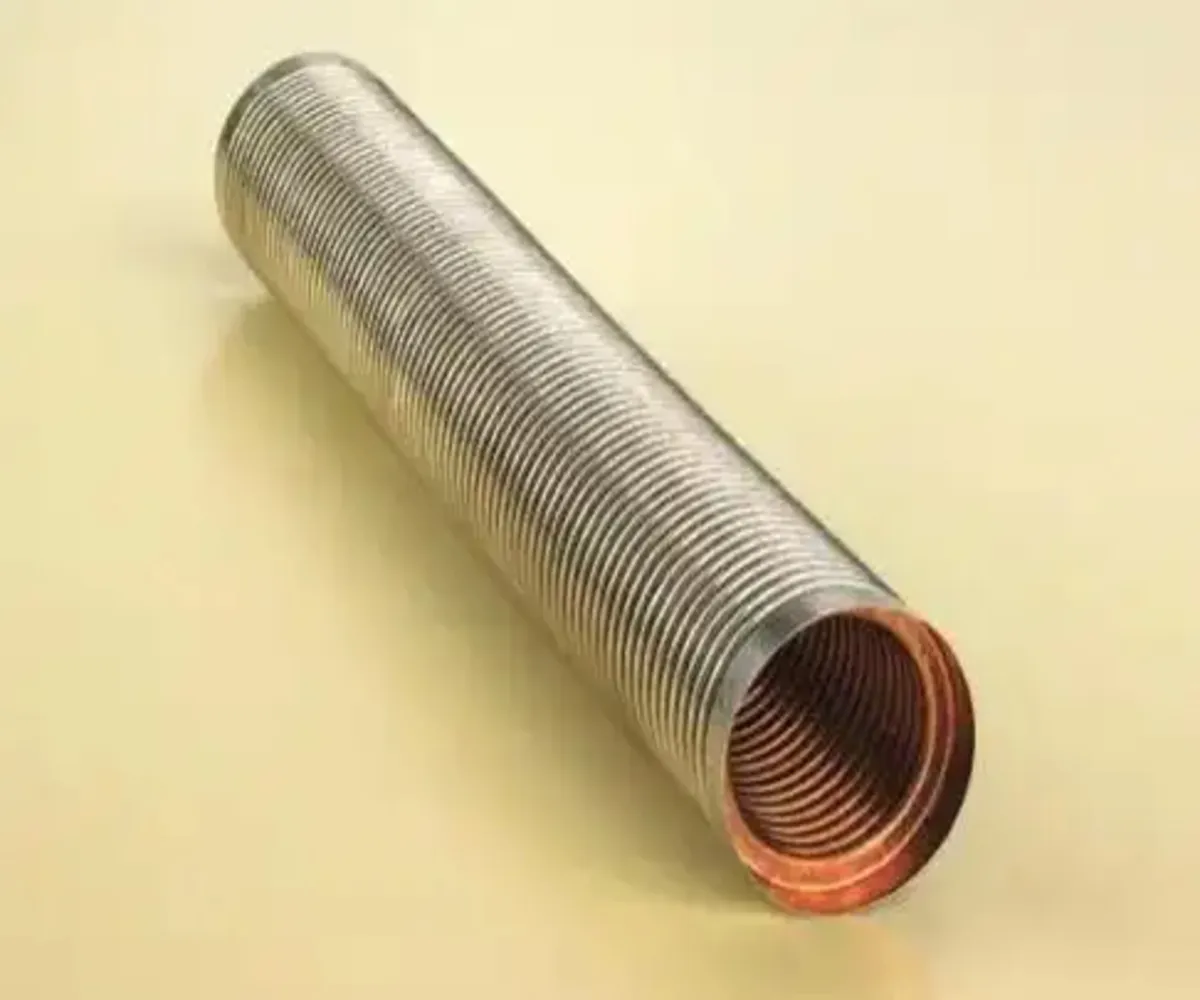

Electroformed Bellows

Electroformed bellows are thin-walled, seamless metal bellows manufactured through an electroforming or electrodeposition process. Instead of being created by machining or welding, they are essentially "grown" into shape.

The basic process is similar to electroplating, but it is performed on a removable mandrel:

1. Mandrel Preparation: First, a mandrel made of aluminum or a fusible alloy is precision-machined (e.g., via CNC machining) to have the exact shape of the bellows' internal profile. The surface finish of this mandrel directly determines the final inner surface quality of the bellows.

2. Electroforming Deposition: The mandrel, acting as the cathode, is immersed in an electrolyte solution containing metal ions (e.g., nickel, copper, gold). Under an electric field, the metal ions deposit uniformly onto the mandrel's surface, gradually forming a dense metal layer.

3. Thickness Control: The thickness of the deposited metal layer can be controlled with extreme precision by accurately regulating the current density, time, and electrolyte composition.

4. Mandrel Removal:

Chemical Dissolution: For aluminum mandrels, they are dissolved using a solution like sodium hydroxide.

Thermal Melting: For low-melting-point alloy mandrels, they are melted out by applying heat.

5. Post-Processing: The result is a complete, seamless metal bellows shell, which may undergo subsequent steps such as cleaning and heat treatment.

Due to the unique manufacturing process, electroformed bellows possess a series of unparalleled advantages:

The wall thickness can be made very thin (e.g., a few micrometers to tens of micrometers), which is difficult to achieve by mechanical machining. Consequently, they are very lightweight and have minimal inertia.

Their shape is perfectly replicated from the high-precision mandrel, resulting in excellent consistency, precise geometric dimensions, and uniform convolutions.

The entire bellows is a complete, monolithic structure without welds. This eliminates the potential risk of fatigue failure at welds, enhancing reliability and fatigue life.

• High Flexibility, Low Stiffness: Due to the thin walls, their stiffness is very low, making them highly sensitive and responsive to minute changes in pressure or force.
• Large Displacement: Capable of achieving significant extension and compression strokes over a relatively long length.
• High Material Purity: The electrodeposited metal layer has high purity and a dense grain structure, resulting in good material properties.
